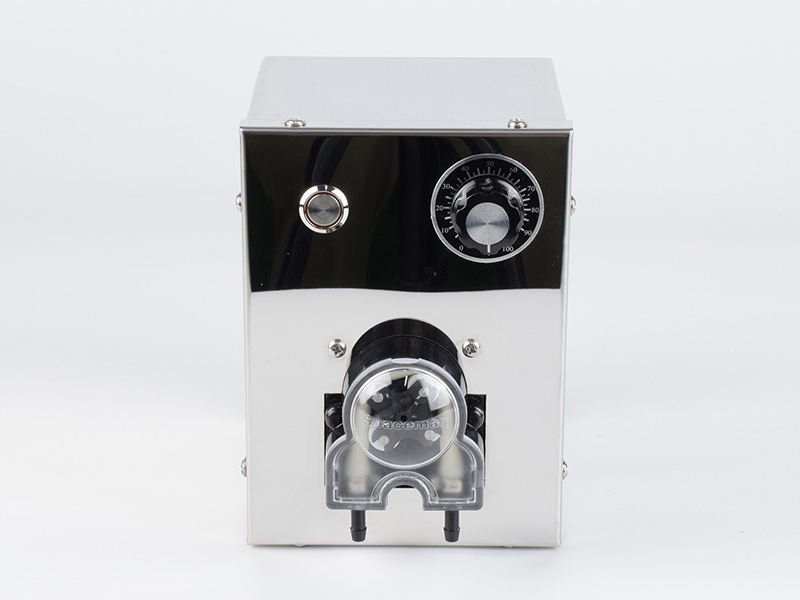

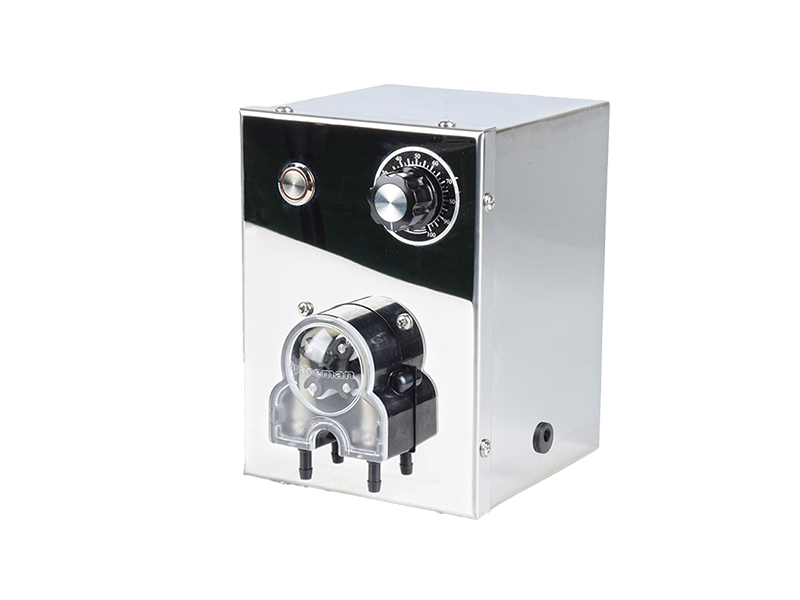

The rotational speed of the Single-Channel Peristaltic Pump WF301 can be adjusted manually or controlled via an external control interface. It features a power-off memory function: after power restoration, the pump operates according to the status it was in when power was last interrupted. It offers an excellent cost-performance ratio. This peristaltic pump is not intended for outdoor use. It is equipped with RS485 communication, as well as external analog control and pulse control functions.
1
120ml/min
100rpm
Share:
WF301 features manually adjustable rotational speed.Power-off memory function: resumes operation according to the status prior to power failure upon restart.Excellent cost-performance ratio.This peristaltic pump is not suitable for outdoor use.
Rotational speed range: 1–100 rpm
Rotational speed resolution: 1 rpm

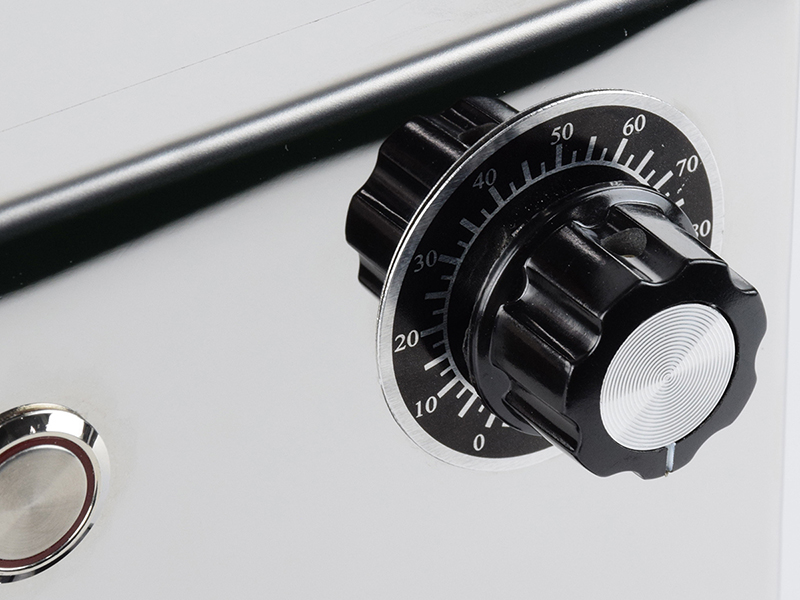

Control mode: knob with buttons; supports external signal control and communication control
Display mode: 3-digit LED rotational speed display
Power-off memory: resumes operation according to the status prior to power failure upon restart
Full-speed function: one-key full-speed operation for priming, emptying and other applications
Power supply: AC 90 V–260 V / 48 W
Operating ambient temperature: 0 ℃–40 ℃
Operating ambient relative humidity: < 80%
Protection class: IP31
Weight: 1.6 kg
| Item | Parameter | |||
Rotational Speed Range | ≤100rpm | |||
Overall Dimensions (L×W×H) | 120mm*120mm*165mm | |||
Operating Ambient Relative Humidity | ＜80% | |||
Operating Ambient Temperature | 0℃～40℃ | |||
Compatible Tubing Specifications | Maximum Reference Flow Rate | ||
25# Tubing (ID 4.8 mm × Wall Thickness 1.6 mm × OD 8 mm) | 118mL/min |
We pride ourselves on customer service and are committed to providing five-star support. If you have any questions about our products, please feel free to call or send an email to us.
Speed1 to 650 rpm, reversible
Flow Rate≤13000ml/min
Speed controlmultiturn potentiometer
Speed0.1 to 100 rpm, reversible
Flow Rate≤380ml/min
Display 3-digit LED displays current rpm
Speed1 to 600 rpm, reversible
Flow Rate≤2200ml/min
Display 3-digit LED displays current rpm
Number of Channels1
Flow Rate Range120ml/min
Rotational Speed Range100rpm
