The stepper motor is subdivided and driven, and the speed is 600 rpm, which can provide a flow of 2200ml/min; the top of the casing is designed with a handle, which is convenient for moving and carrying the body. This pump is used in conjunction with the sub-packing controller FK-1A, which can realize the filling function, and the operation is simple and intuitive
1 to 600 rpm, reversible
≤2200ml/min
3-digit LED displays current rpm
Share:
Product description

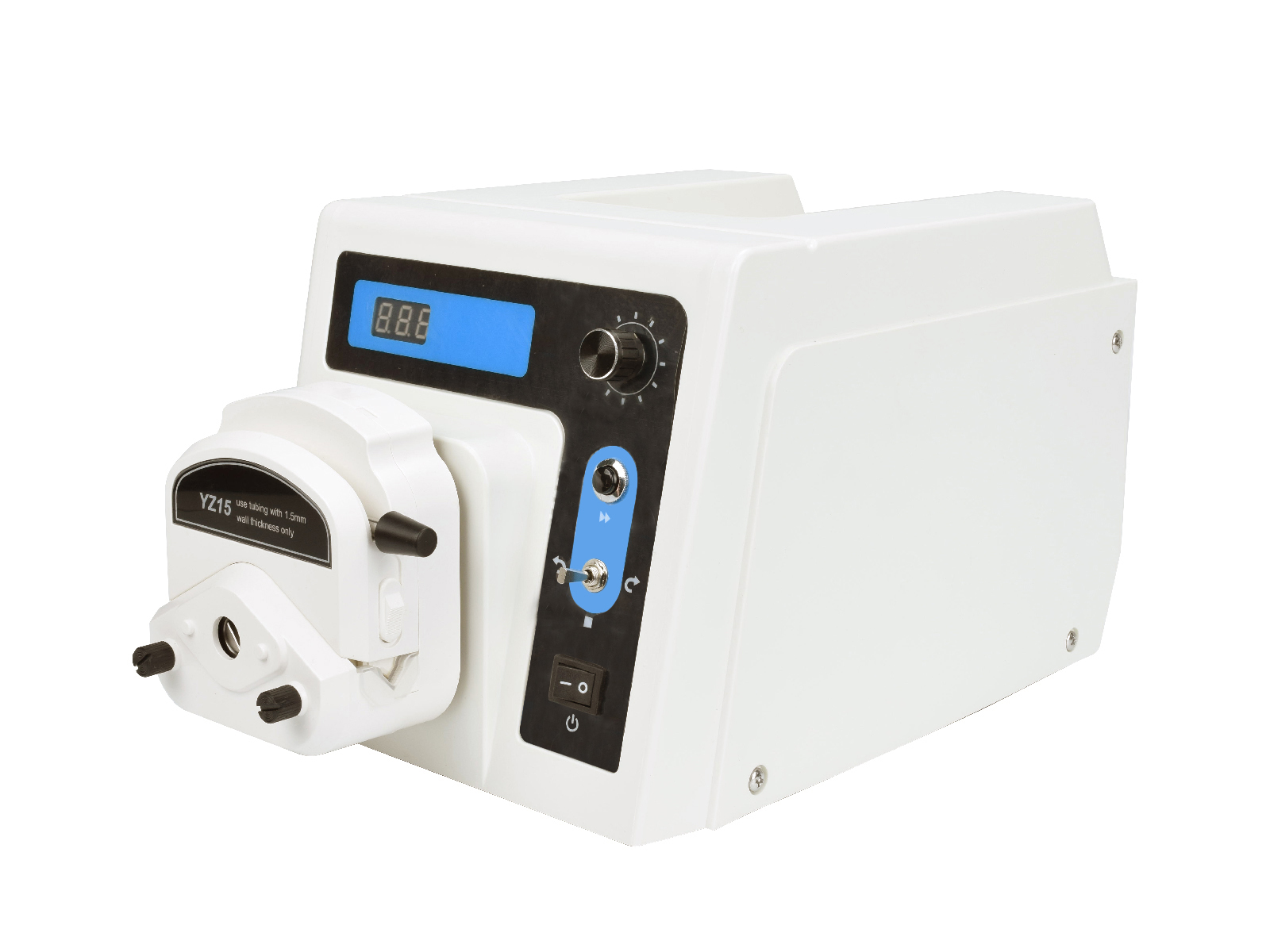

The stepper motor is subdivided and driven, and the speed is 600 rpm, which can provide a flow of 2200ml/min; the top of the casing is designed with a handle, which is convenient for moving and carrying the body. This pump is used in conjunction with the sub-packing controller FK-1A, which can realize the filling function, and the operation is simple and intuitive
Features
◇ MAX key: with filling and emptying functions
◇ Rotation speed can be adjusted manually or controlled by external control interface
◇ Power-down memory function: After power-on again, it will work according to the state of the last power-off
◇ With RS485 communication function, external control analog quantity and pulse control function
Dimensions
We pride ourselves on customer service and are committed to providing five-star support. If you have any questions about our products, please feel free to call or send an email to us.
Speed1 to 650 rpm, reversible
Flow Rate≤13000ml/min
Speed controlmultiturn potentiometer
Speed0.1 to 100 rpm, reversible
Flow Rate≤380ml/min
Display 3-digit LED displays current rpm
Speed1 to 600 rpm, reversible
Flow Rate≤2200ml/min
Display 3-digit LED displays current rpm
Number of Channels1
Flow Rate Range120ml/min
Rotational Speed Range100rpm
