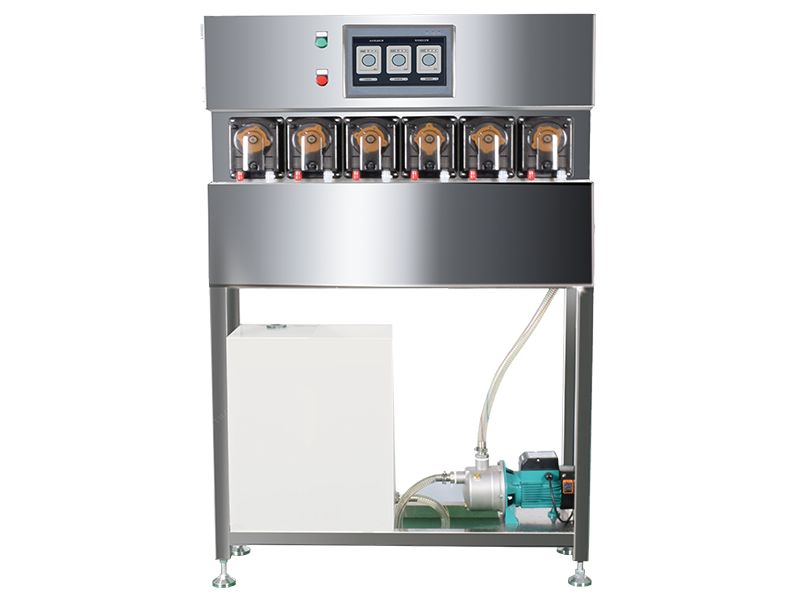

Product Description

Laundry Liquid Dispenser acts as the scientific manager for laundry chemicals, dedicated to reducing labor and improving laundry quality.With the automatic dosing of liquid chemicals via the dispenser, and through programmable settings.

it can synchronize with washing machines, automatically dispensing the corresponding laundry chemicals into the machine for different wash cycles, realizing a fully automatic laundry process in the true sense.

As more and more laundries and laundry rooms choose liquid laundry chemicals, and with government regulations on phosphate-free formulations, an increasing number of users will opt for liquid laundry chemicals — a more convenient and eco-friendly choice.

Performance Features:

•   Made of corrosion-resistant materials, sturdy and durable, with a service life of more than 10 years;

•   Improves washing stability and ensures consistent laundry quality;

•   Reduces costs and minimizes waste;

•   Boosts washing efficiency and shortens laundry cycles;

•   Protects linens from damage caused by manual dosing errors;

•   Enhances labor protection and provides a safer working environment for staff;

•   Shortens employee training periods;

•   Supports both manual and automatic control modes;

•   Scene-based customization to meet diverse requirements;

•   Can operate with normal tap water pressure, or be equipped with a water tank booster pump system.

•


Working Principle

1. Automatic Control: By connecting to washing machines, the dispenser receives signals from the machines. The control system processes these signals and controls the dosing pumps to deliver the required detergents at the preset dosage, while activating the delivery system to feed the detergents into the corresponding washing machines at specific times.

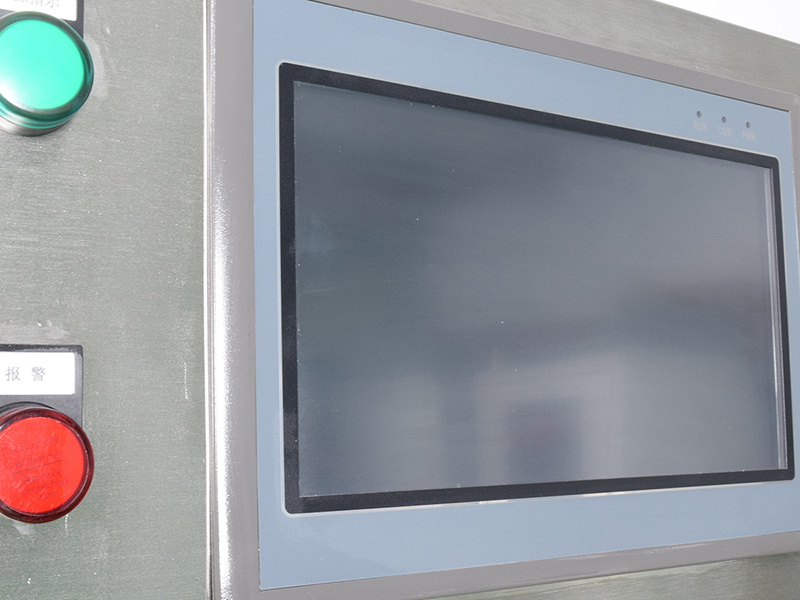

2. Manual Control: The type and dosage of detergents can be manually controlled via the LCD screen on the controller.

System Composition

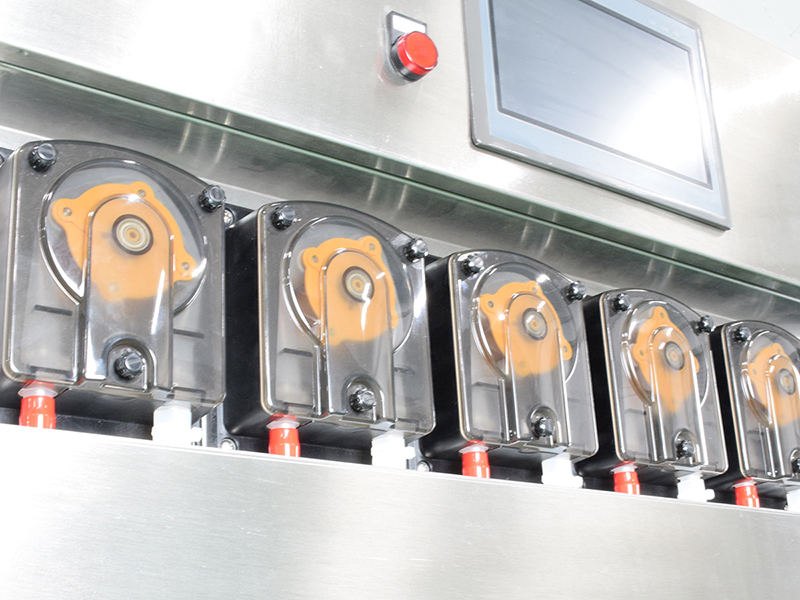

1) Dosing System: Mainly composed of peristaltic pumps (reference flow range: 300 mL – 7000 mL) and silicone tubing (consumable parts), etc.

2) Delivery System: Three delivery modes are available:Dry standard delivery

• Standard water delivery (tap water)

• External power water delivery (water tank + water pump, using a flusher to mix detergent with water before feeding into the washing machine)

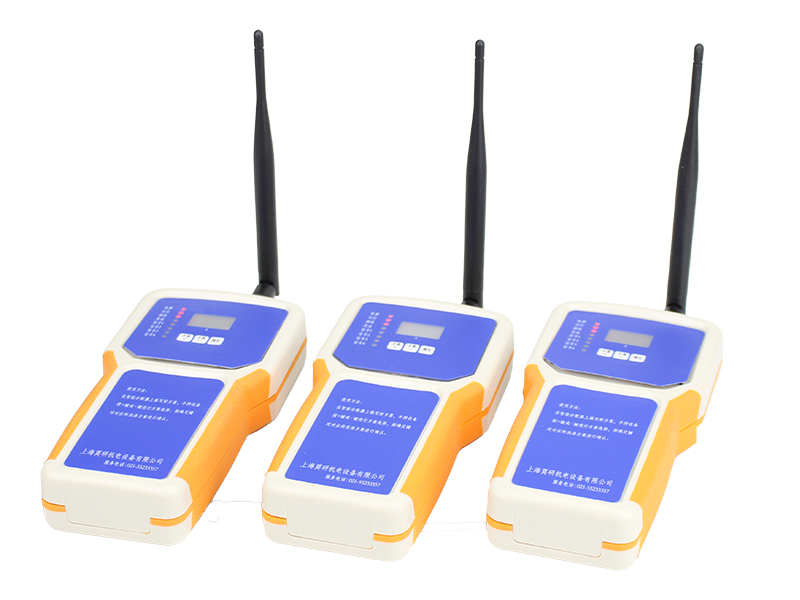

3) Signal Acquisition System: The system that receives connection signals from washing machines.

4) Control System: As the “brain” of the dispenser, its performance determines whether the dispenser is easy to operate.

5) Number of Peristaltic Pumps: Optional with 1–7 pumps, capable of dosing up to 7 types of laundry chemicals.
