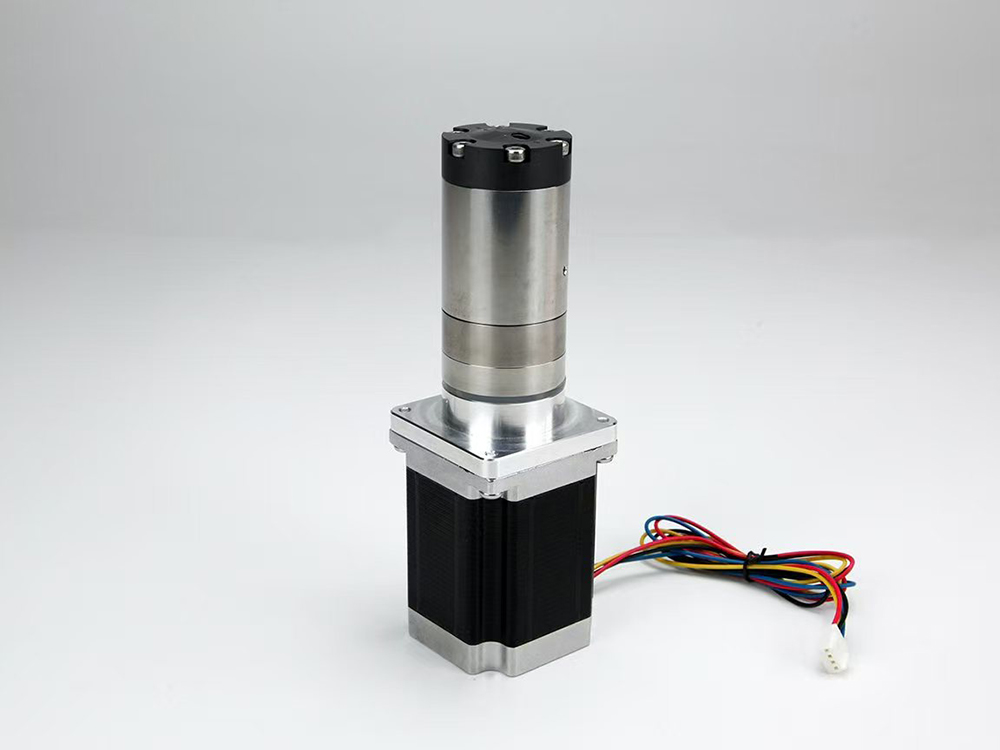

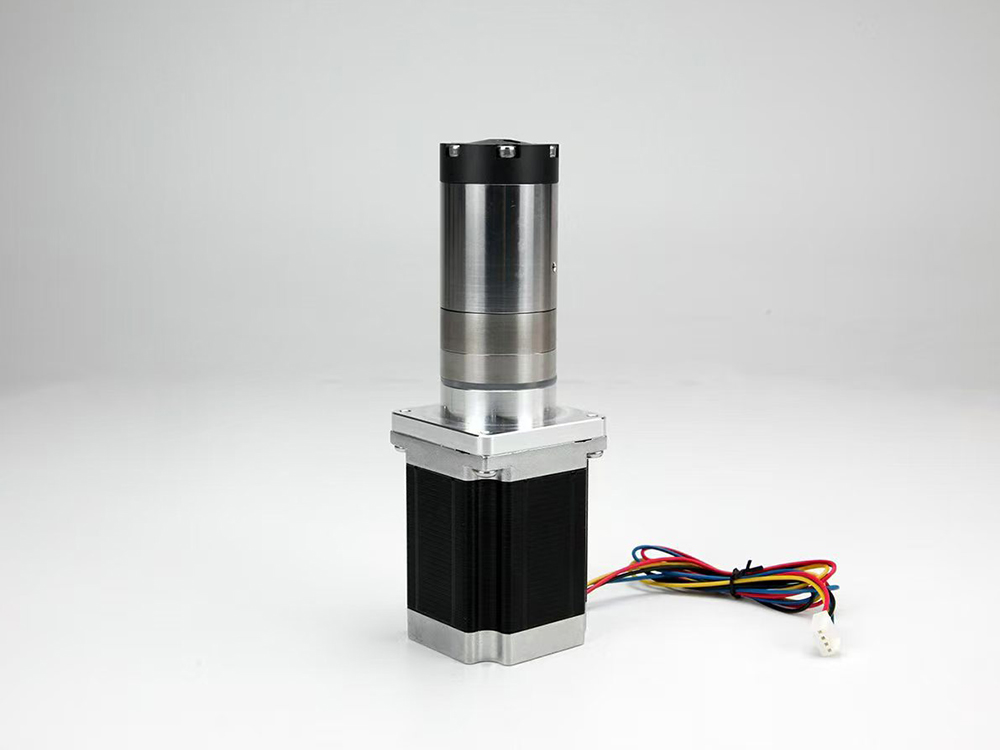

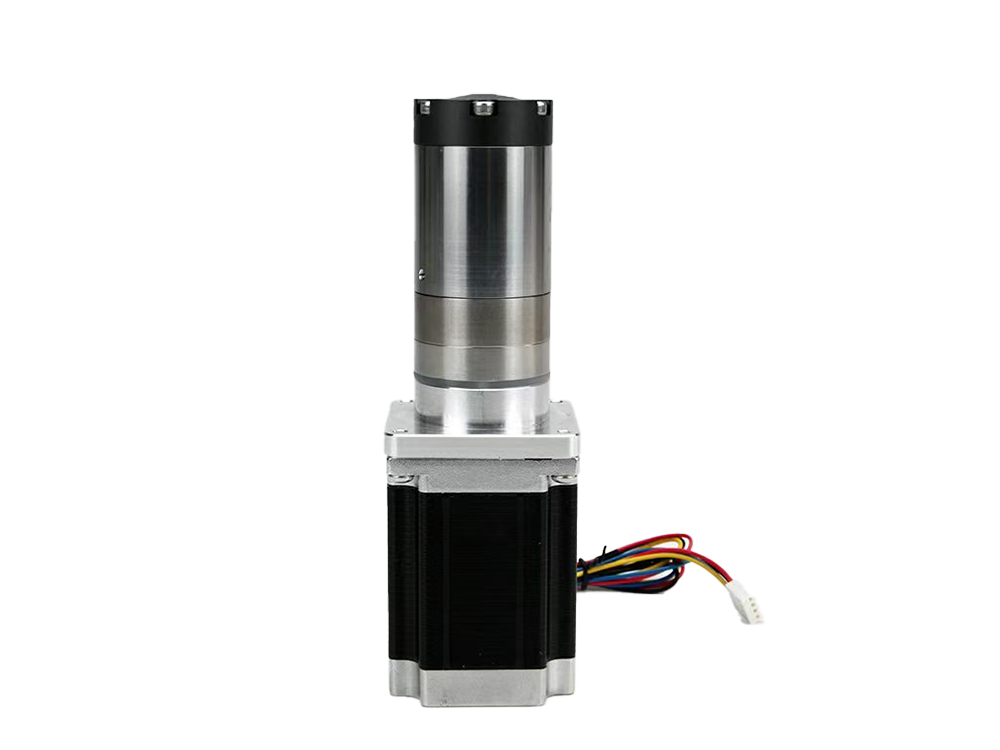

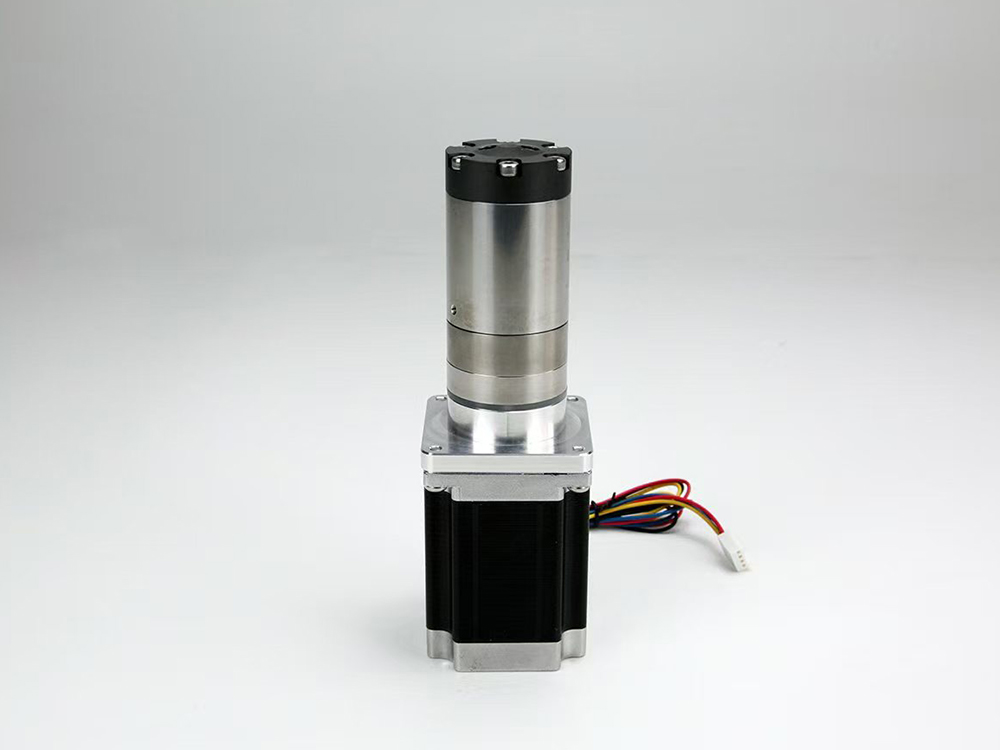

Four-Plunger Sampling Plunger Pump FT-60 The FT-60 is a high-precision, continuous sampling plunger pump. Adopting a 4-plunger linkage mechanism, it enables continuous fluid delivery and provides stable pressure. It features a compact structure and simple control. It offers a flow rate of 5 μL/min to 32 mL/min and a pressure of 100 PSI. The stepper motor delivers high control accuracy with reversible forward and reverse rotation. The ceramic material is resistant to most organic solvents, and the valveless structure allows continuous fluid transmission.
5μL/min-32mL/min
60rpm
4-plunger linkage mechanism
Share:
The FT-60 is a high-precision, continuous-sampling plunger pump.It adopts a four-plunger linkage mechanism to realize continuous fluid delivery and provide stable pressure.It features a compact structure and simple control.
1. Provides a flow rate of 5 μL/min - 32 mL/min
2.Delivers a pressure of 100 PSI
3.Features high-precision stepper motor control
4.Supports reversible forward and reverse rotation
5.Ceramic material is resistant to most organic solvents
6.Valveless structure enables continuous fluid delivery
We pride ourselves on customer service and are committed to providing five-star support. If you have any questions about our products, please feel free to call or send an email to us.

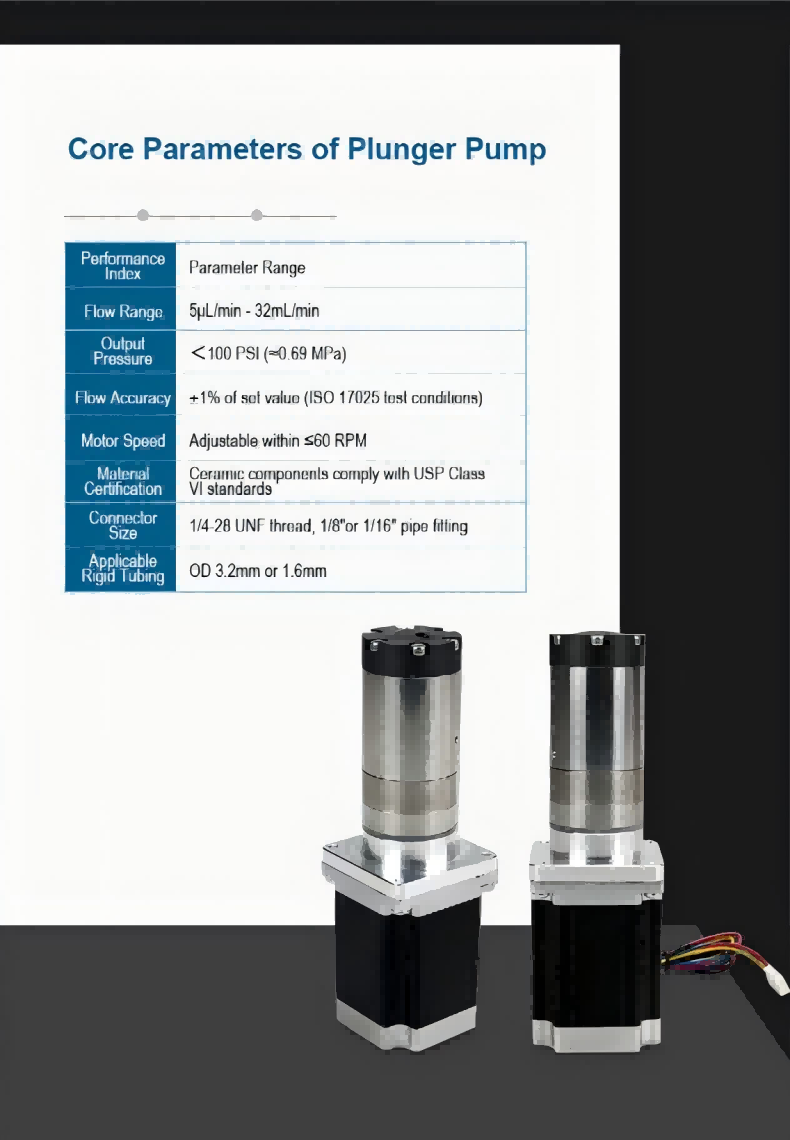

Flow Range5μL/min-32mL/min
Motor Speed60rpm
Working Principle4-plunger linkage mechanism
Flow Range10ul/min-50ml/min
Fitting Size10-32 UNF thread, 1/16" tube fitting
Applicable Pressure≤40MPa
Pump Head MaterialPEEK
Dispense Volume Accuracy＞99.5%
Stroke Resolution2000 steps over full stroke: 0.00635 mm/step
