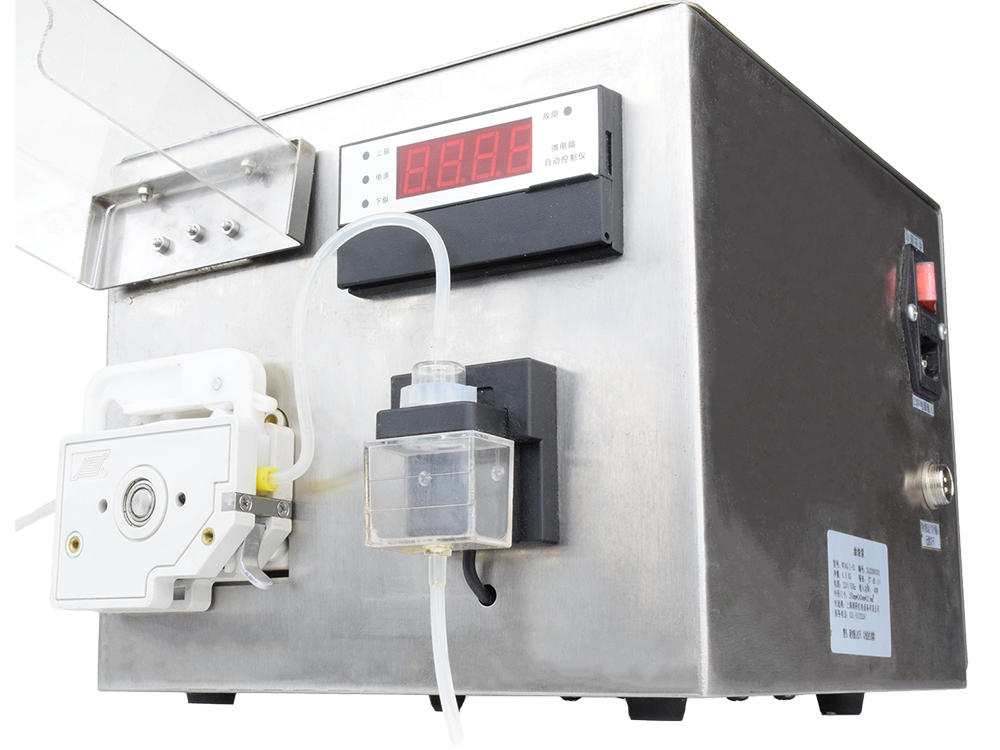

The Automatic Titration System WT40/I sets the target number of liquid droplets via an automatic controller. A sensor monitors real‑time data and provides feedback, while a microcomputer chip controls the constant‑flow pump to deliver the corresponding liquid volume, forming a closed‑loop control system that ensures accurate flow output. It is particularly suitable for applications requiring long‑term, precise micro‑flow dosing.
0-20ml/min
20-220drops/min
0.1-100rpm
Share:
Automatically adjusts after setting the target droplet count
Microcomputer chip control, high precision, easy operation;Control accuracy: ±1 droplet; stable value reached within 10 seconds
Timing function: 1 s – 999 h
Supports full-speed priming and cleaning functions, low-liquid alarm, switch value signal output, with optional audible and visual alarms

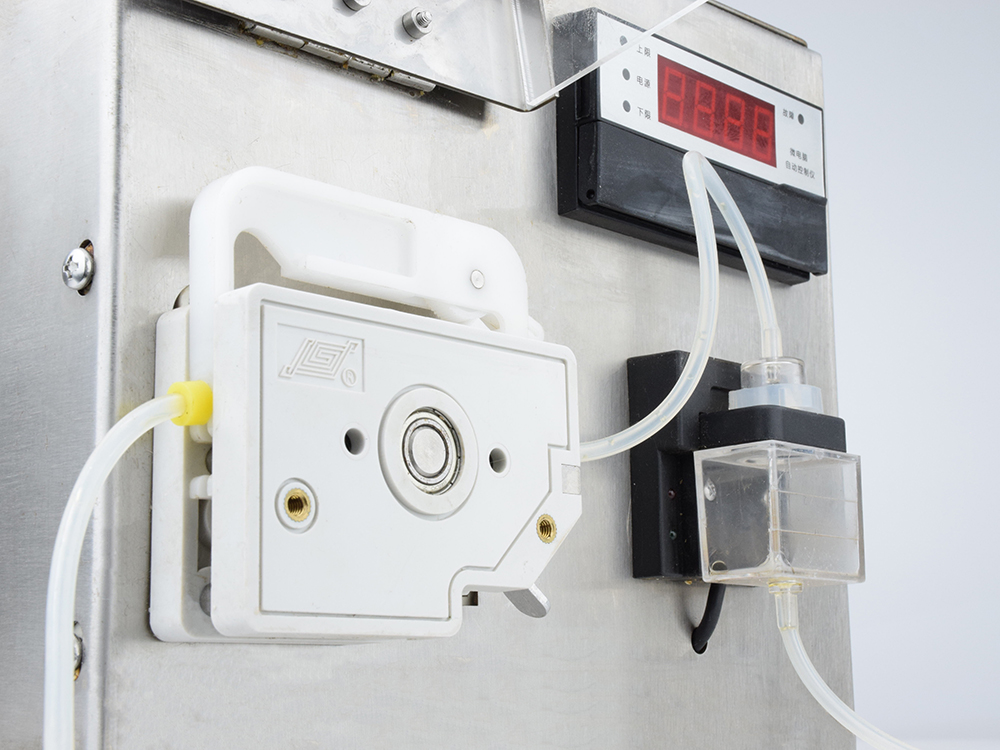

Easy hose replacement and fixing; micro-adjustable tube compression clearance; stable flow with small pulse amplitude
Large-capacity drip chamber with minimal liquid retention; high transparency, no wall adhesion; simple operation and easy cleaning
Technical Parameters
Automatic titration system | WT40/I-01 |
Flow range | 0-20 ml/min (flow mode) 20-220 drops/min (drop mode) |
Speed range | 0.1-100 rpm |
Flow detection | utilizes adaptive grating sensor |
external control | interface via RS485 communication for analog signals (0-10 KHz). |
We pride ourselves on customer service and are committed to providing five-star support. If you have any questions about our products, please feel free to call or send an email to us.
Flow Range0-20ml/min
Titration Mode20-220drops/min
Rotation Speed Range0.1-100rpm
